Product details

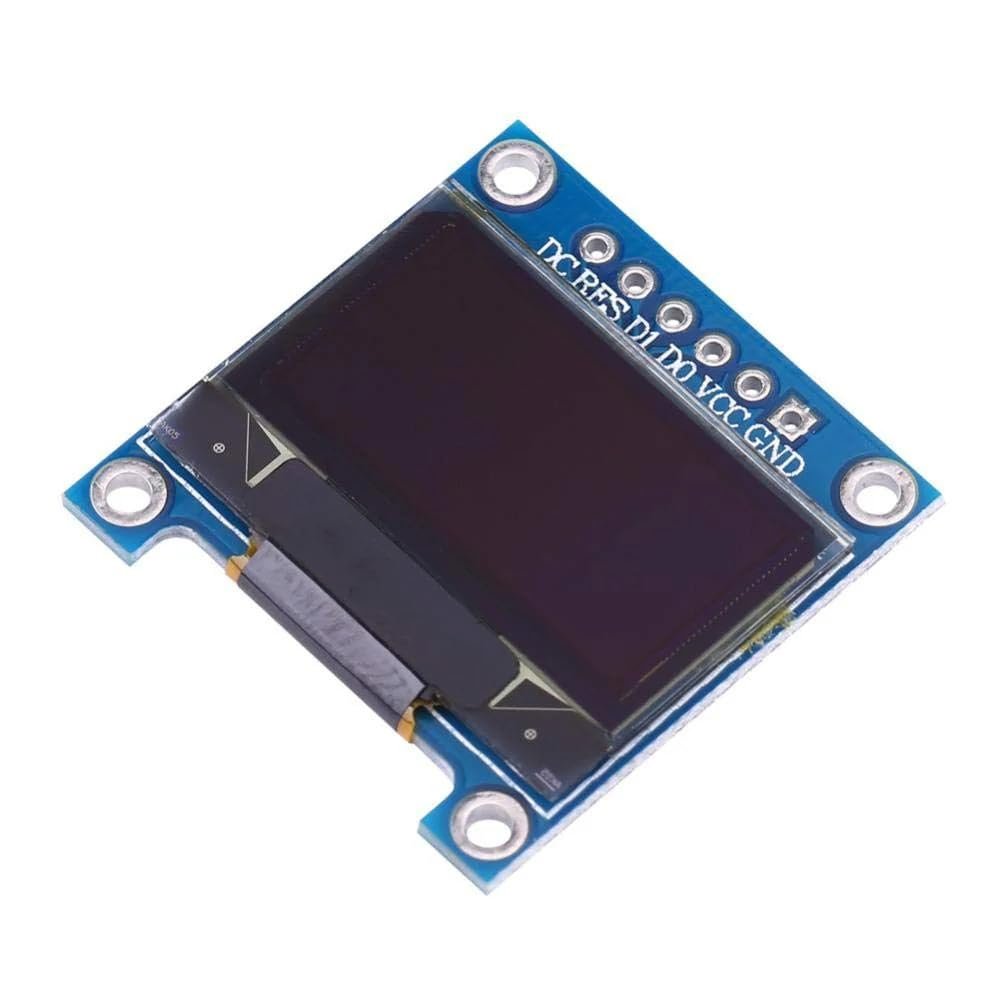

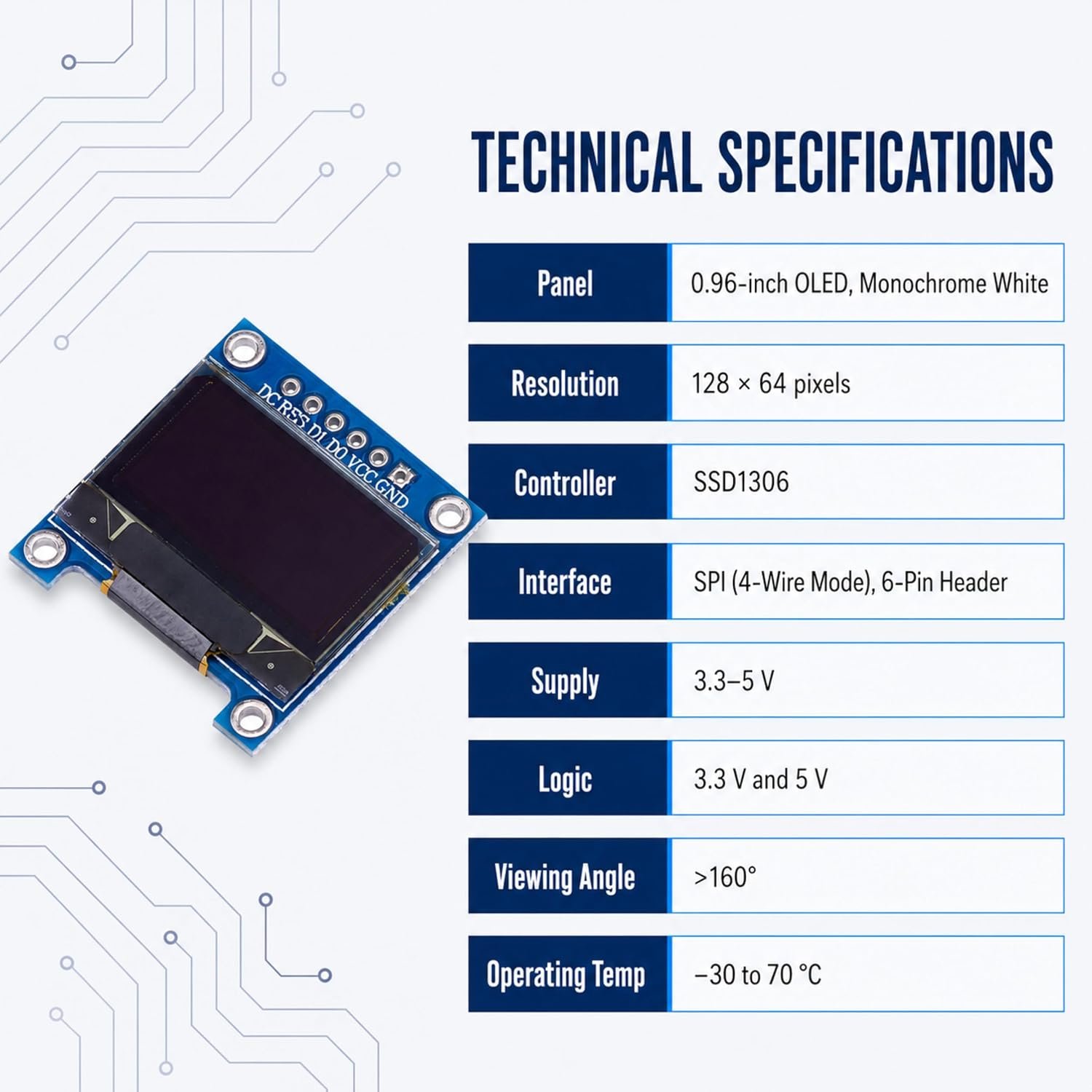

- Compact Panel Display For Embedded Builds — Puts sensor readings, menu screens and status text on a 128 x 64 pixel canvas inside a 27 x 27 mm footprint, sized for handheld instruments, benchtop meters and enclosure lids.

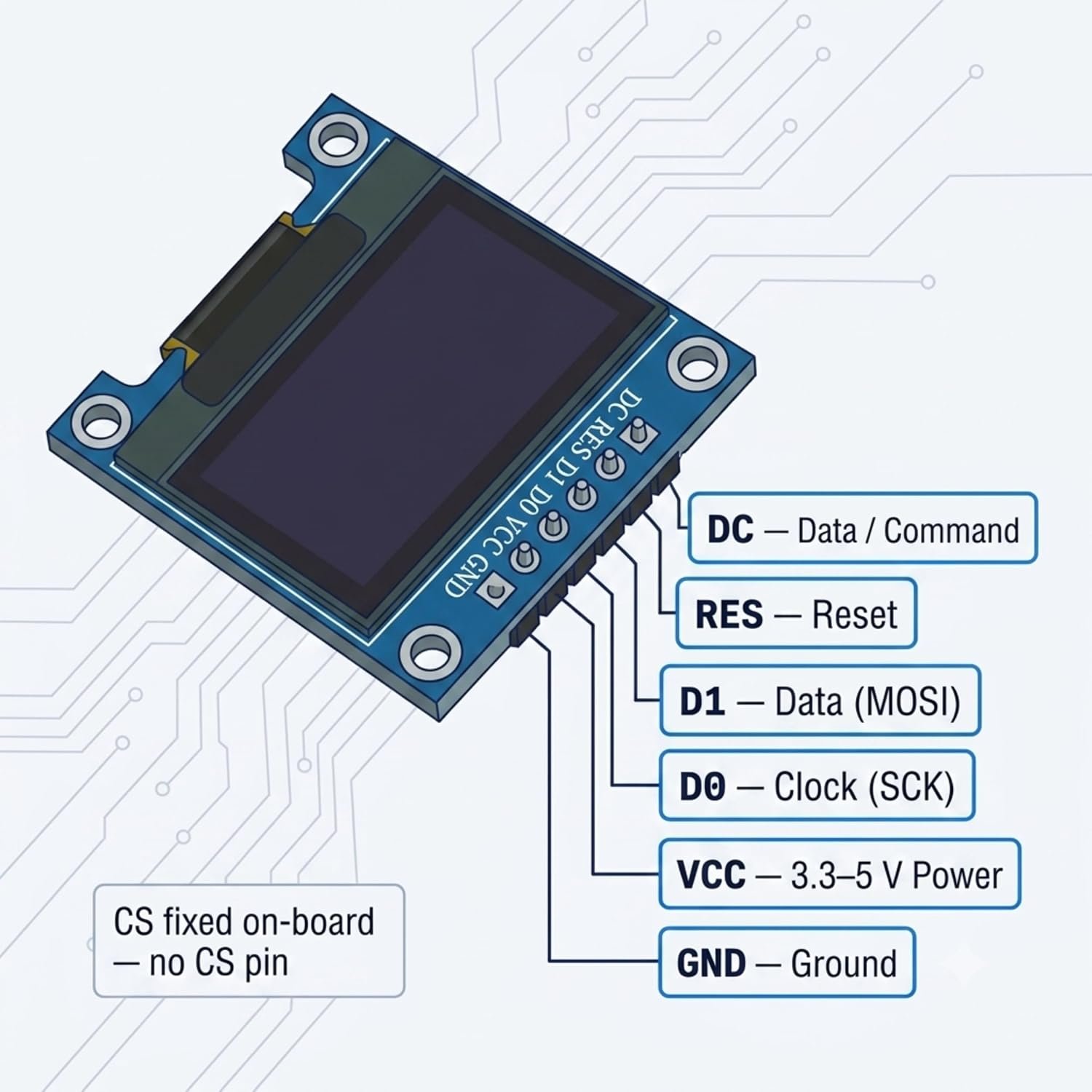

- Four Wire SPI Interface — The six pin header carries GND, VCC, D0 clock, D1 data, RES reset and DC data command, driven by an SSD1306 controller for direct wiring to standard microcontroller development boards.

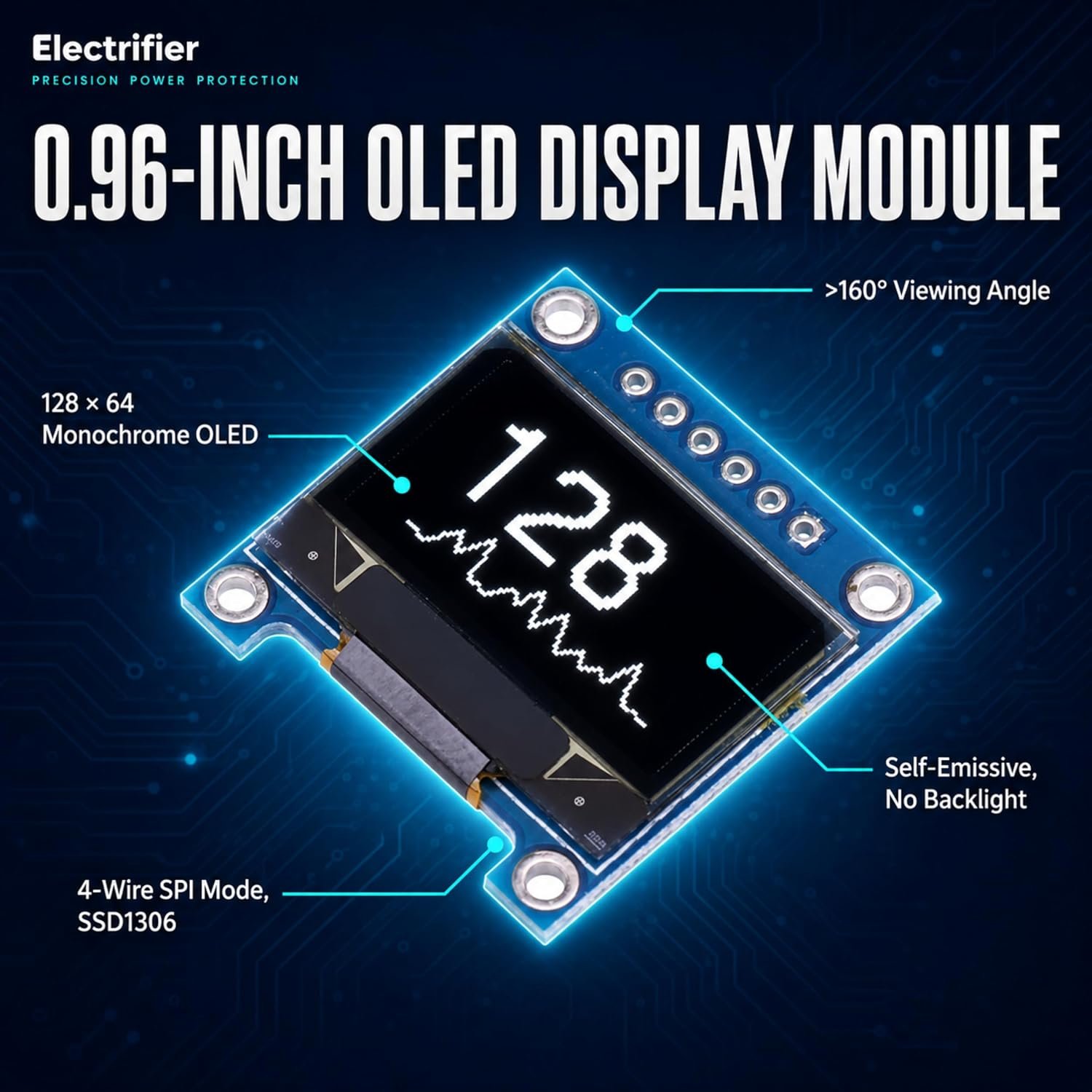

- Self Emissive White Panel — Every pixel generates its own white light with no backlight layer, and the full active area renders in a single colour rather than the split yellow and blue band used on some 0.96 inch modules.
- Wide Supply And Operating Range — Runs from a 3.3V to 5V rail and accepts both 3.3V and 5V logic, with a rated operating range of -30 to 70 degrees Celsius for sealed panels, garage benches and outdoor prototype enclosures.

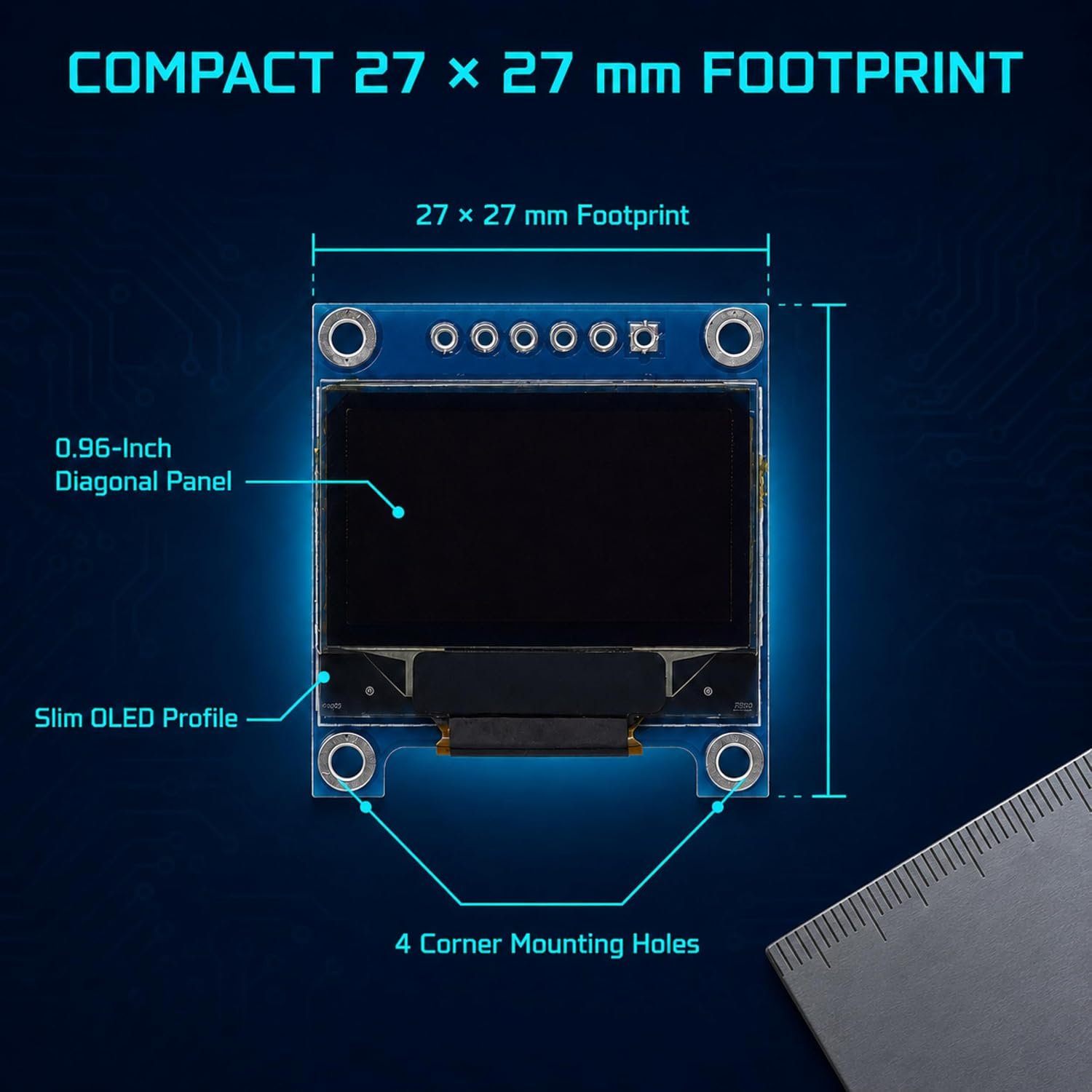

- Board Level Mounting Points — Four plated corner holes let the display sit on standoffs behind a panel cut-out instead of hanging on its header pins, keeping the glass square and supported during assembly and transport.
- One Year Warranty And Support — Covered by a 1 year Electrifier warranty and produced at an ISO-certified manufacturing facility, with after-sales support handled in India and replacement parts stocked locally.
