Product details

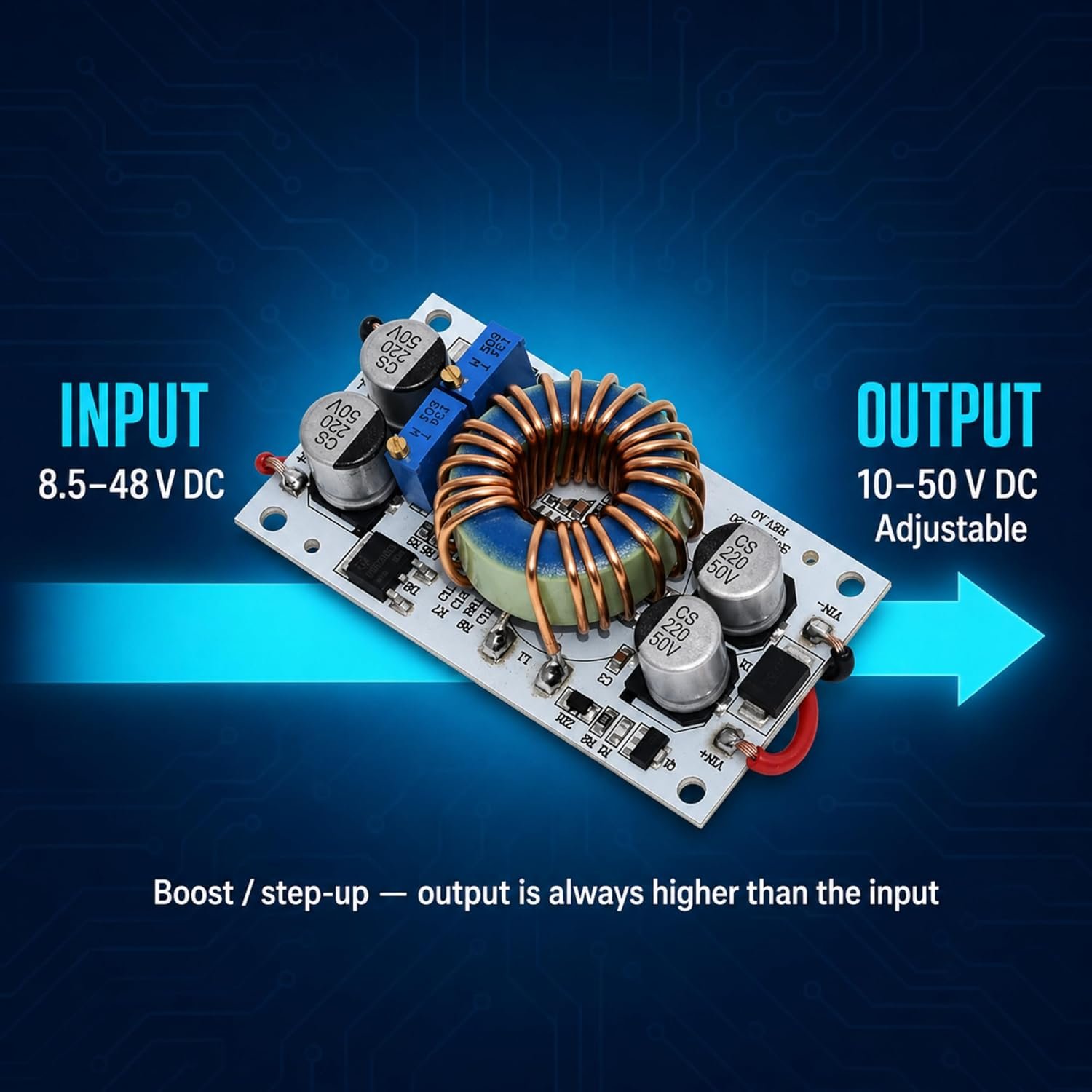

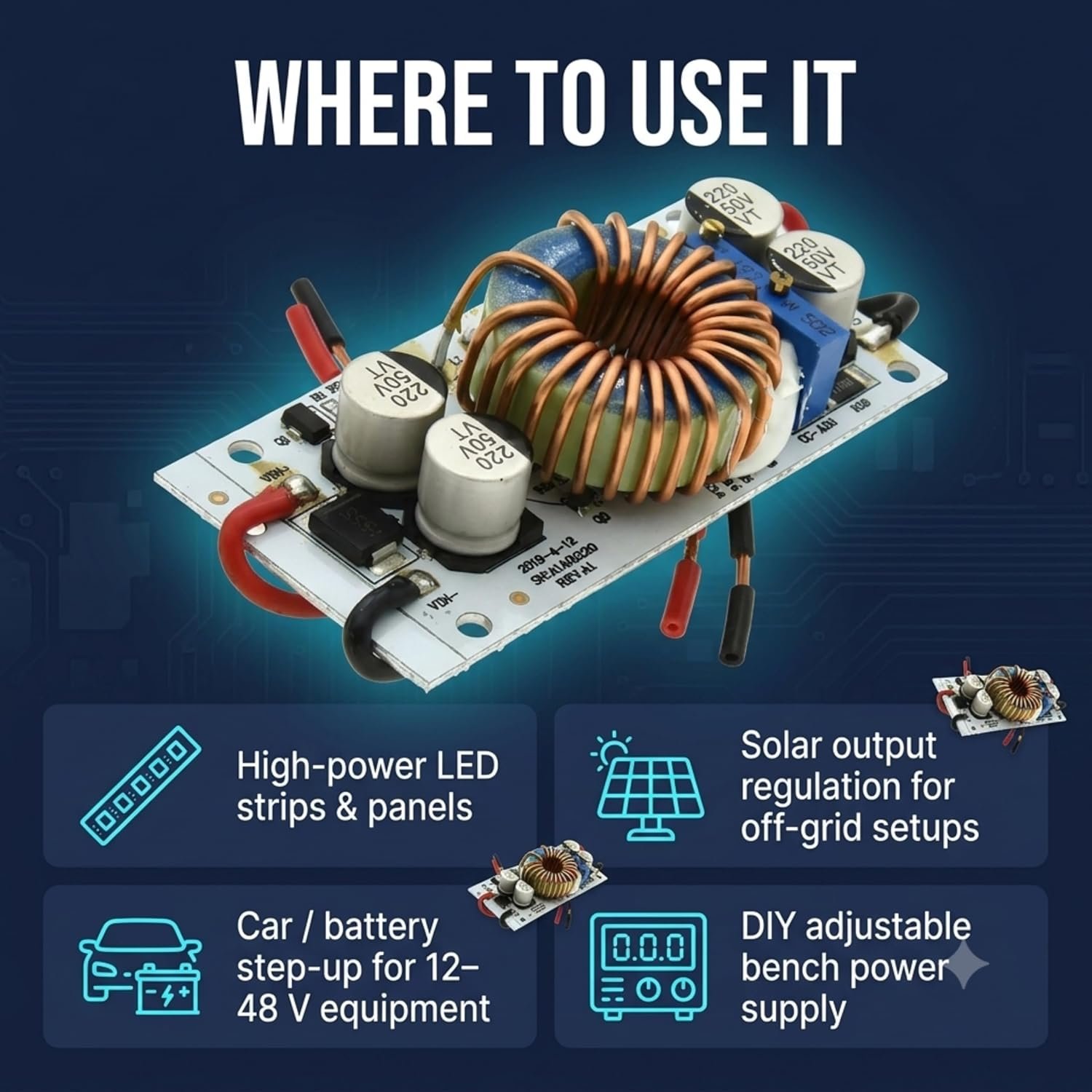

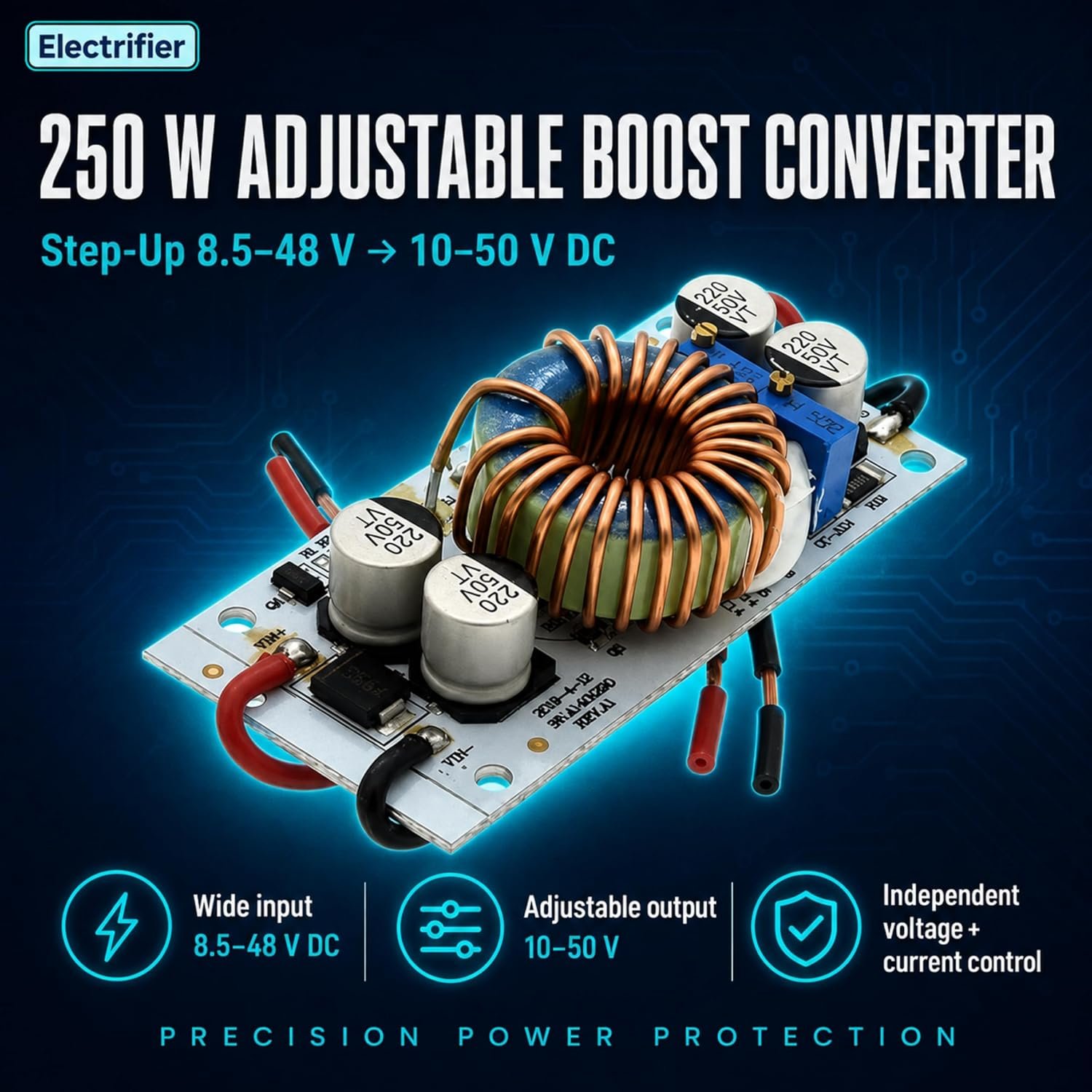

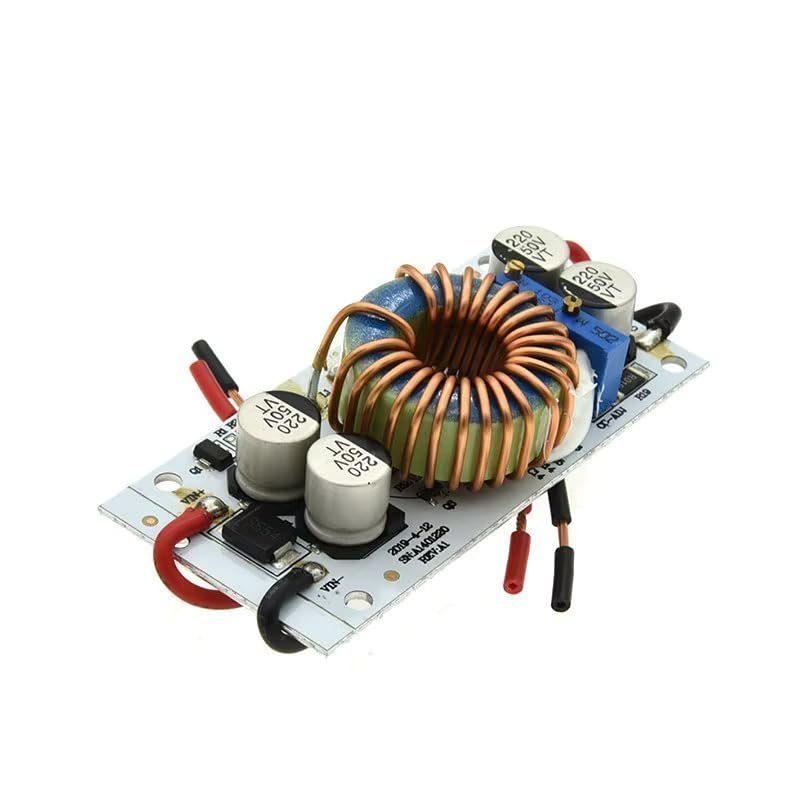

- Wide Input, Adjustable Output — Accepts a DC 8.5V to 48V source and steps it up to a user-set 10V to 50V, so one module drives LED arrays, routers, PDAs, and 12V-to-48V equipment that need more voltage than the supply provides.

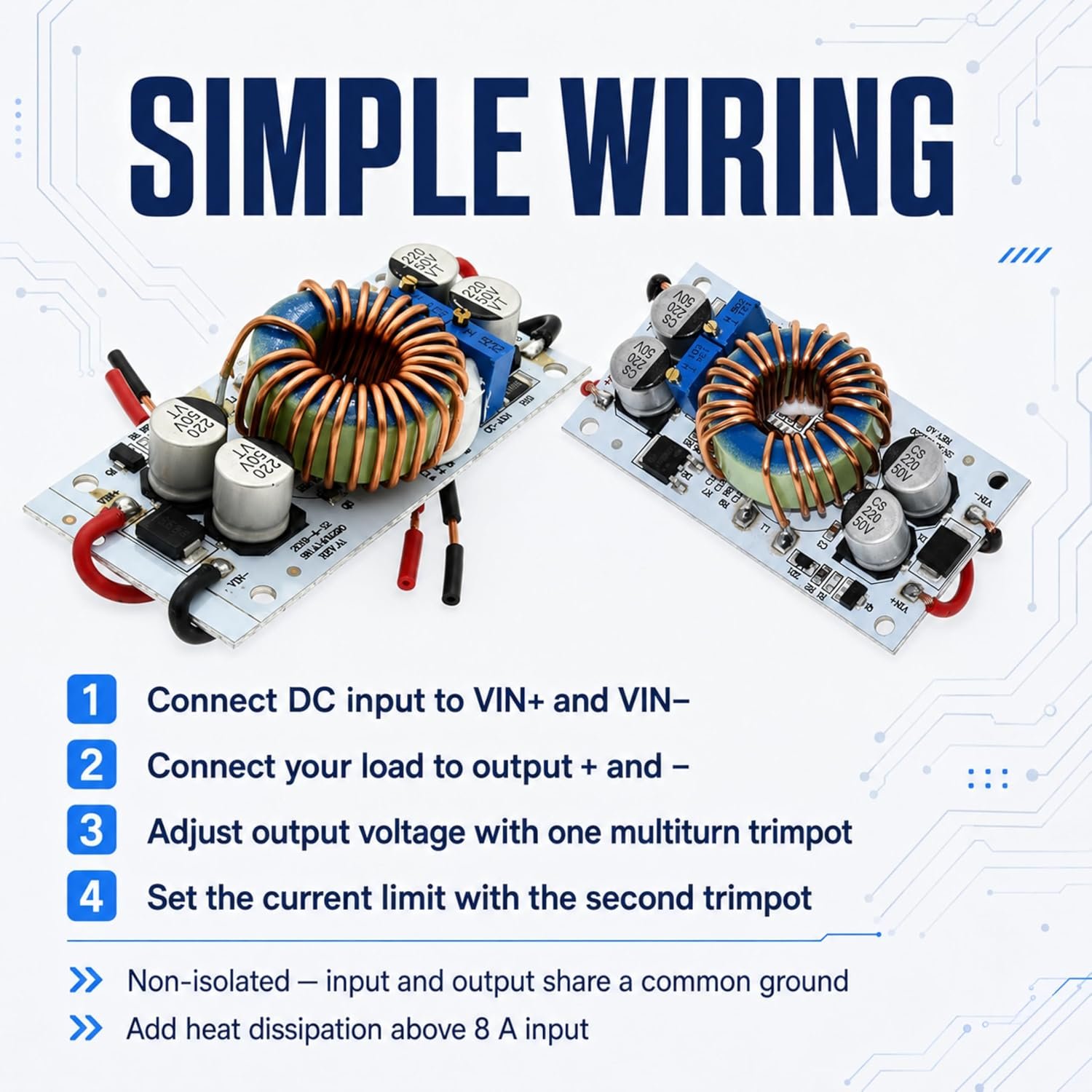

- Independent Voltage And Current Control — Two multiturn trimmer potentiometers set output voltage and the constant-current limit separately, so an LED string or a battery under charge gets a steady voltage with a capped charge current.

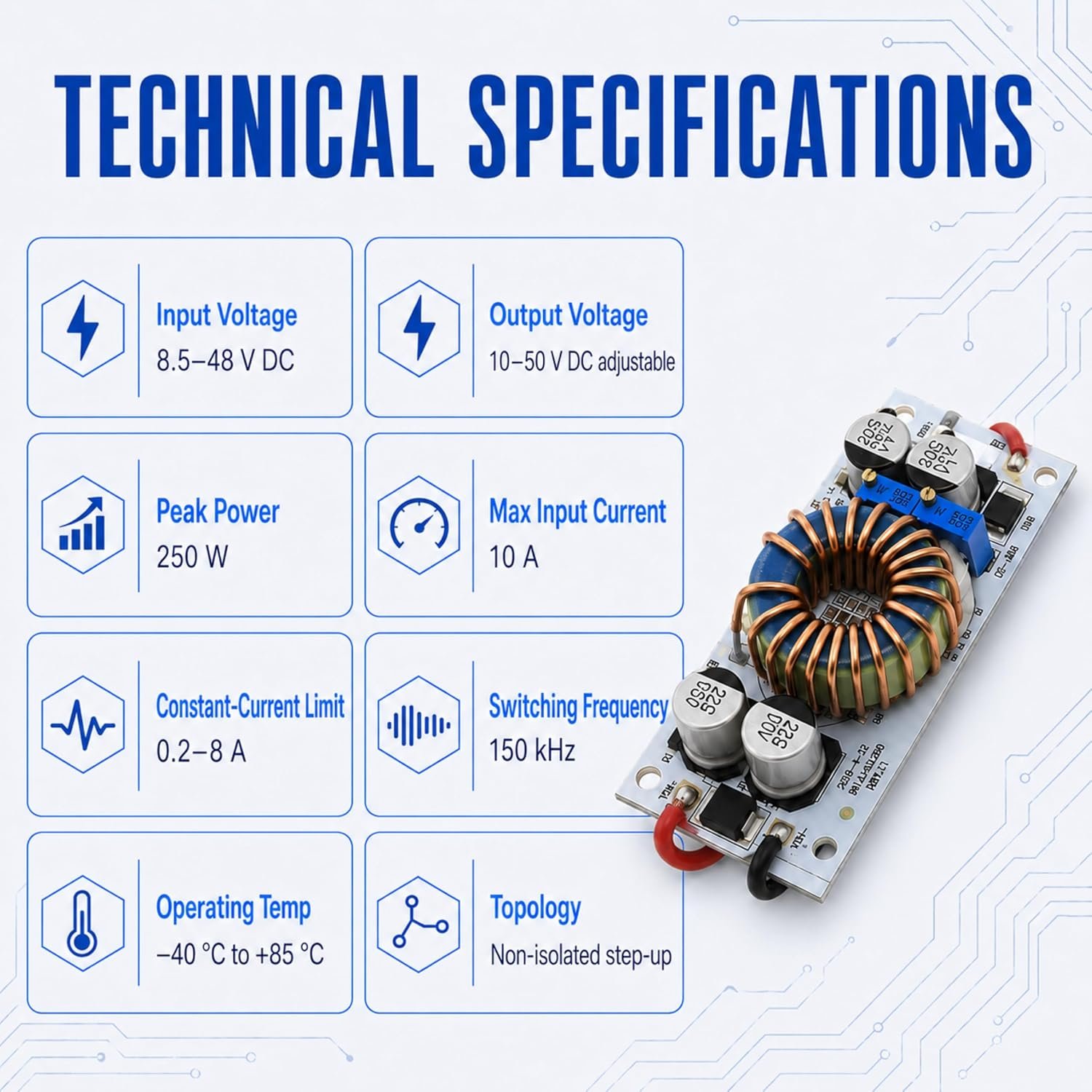

- High-Current Non-Isolated Design — Handles up to 10A input current (add heat dissipation above 8A) in a compact non-isolated step-up layout, with a 0.2A to 8A constant-current limit for LED strings and battery charging.

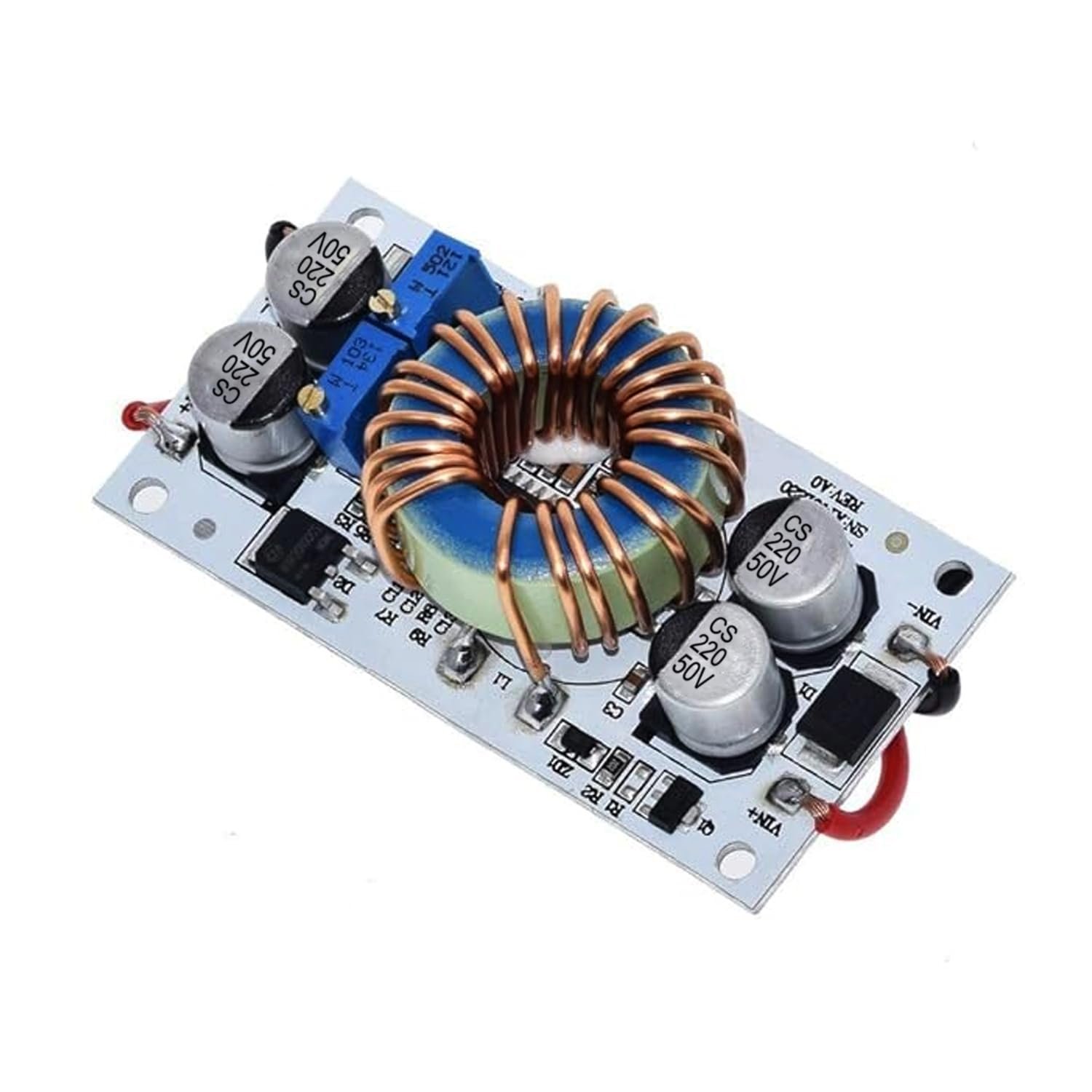

- Aluminum Substrate Heat Spreading — The metal-backed board carries switching heat away from the inductor and MOSFET, supporting sustained operation across a wide -40°C to +85°C ambient range inside enclosed builds.
- Output Above Input By Design — As a boost converter the set output must stay above the input voltage; keep the input source comfortably below your target output to reach the full 10V to 50V window without clipping.
- Electrifier Assurance — Manufactured in an ISO-certified facility and backed by a 1-year Electrifier warranty with responsive after-sales support for setup and technical questions.
