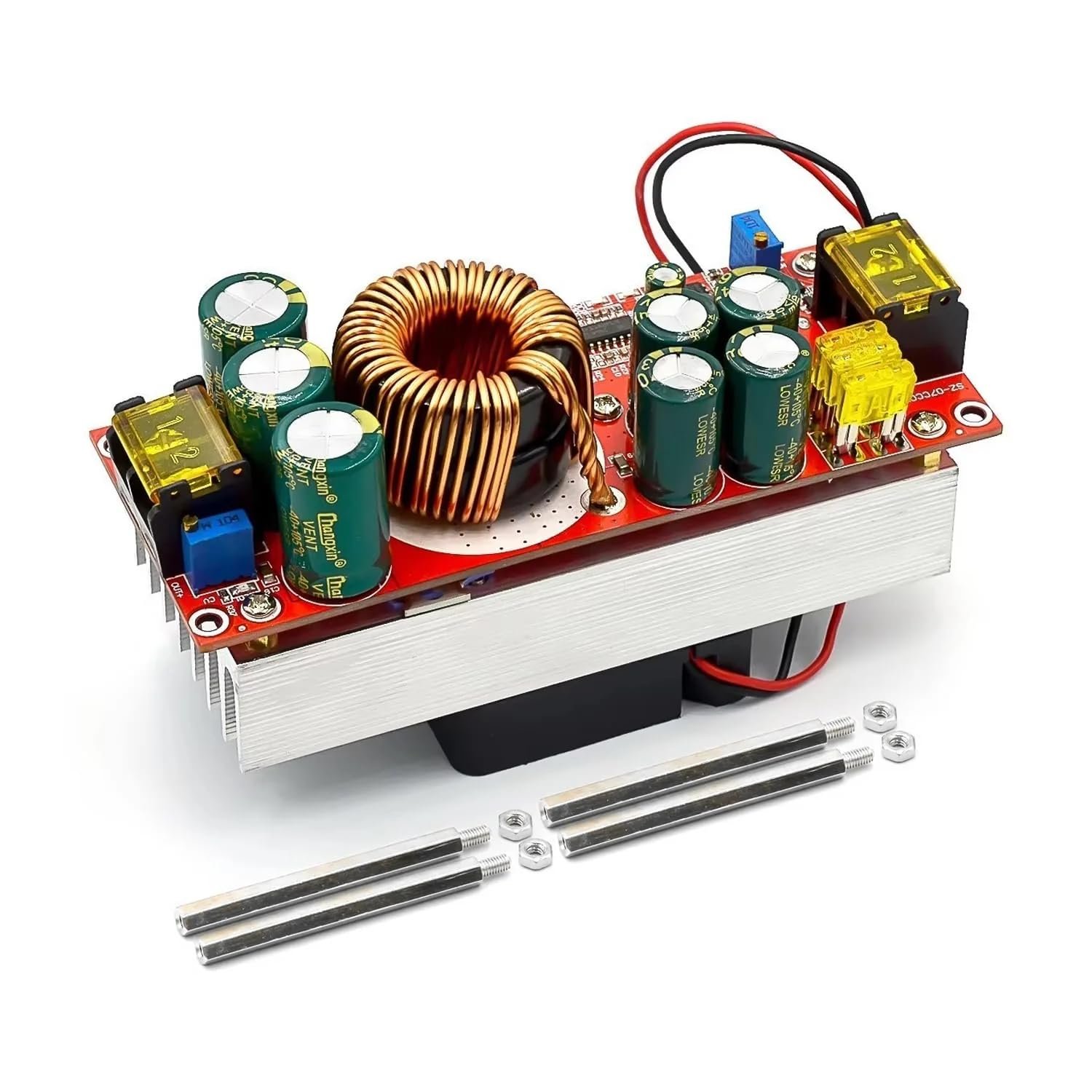

Electrifier 1500W Peak Boost Converter 10-60V to 12-97V, Fan Cooled

• High-Power Step-Up — Takes 10-60V DC and boosts it to an adjustable 12-97V. As a boost converter, the output must be set higher than the input.
• 1500W Peak Rating — 1500W is the peak rating; for continuous loads, run well below peak and keep the cooling fan connected.
• Fan-Cooled Aluminium Heatsink — A fan-cooled aluminium heatsink carries heat away from the switching parts during heavy loads.
• Voltage and Current Limit Trimmers — Separate trimmers set the output voltage and the current limit (CV/CC), so the module can charge batteries or drive LED arrays safely.
• 150 kHz Switching and Fuse Holder — Switches at 150 kHz and has an onboard fuse holder for added protection.
• Common Uses — Charging higher-voltage battery packs from a lower-voltage source, EV and e-rickshaw projects, solar systems and high-voltage bench supplies.

Sold and supported in India by Electrifier Innovations Pvt. Ltd. See our Warranty page for coverage and claims.
